Tag Gun Needles
Mark II Fine

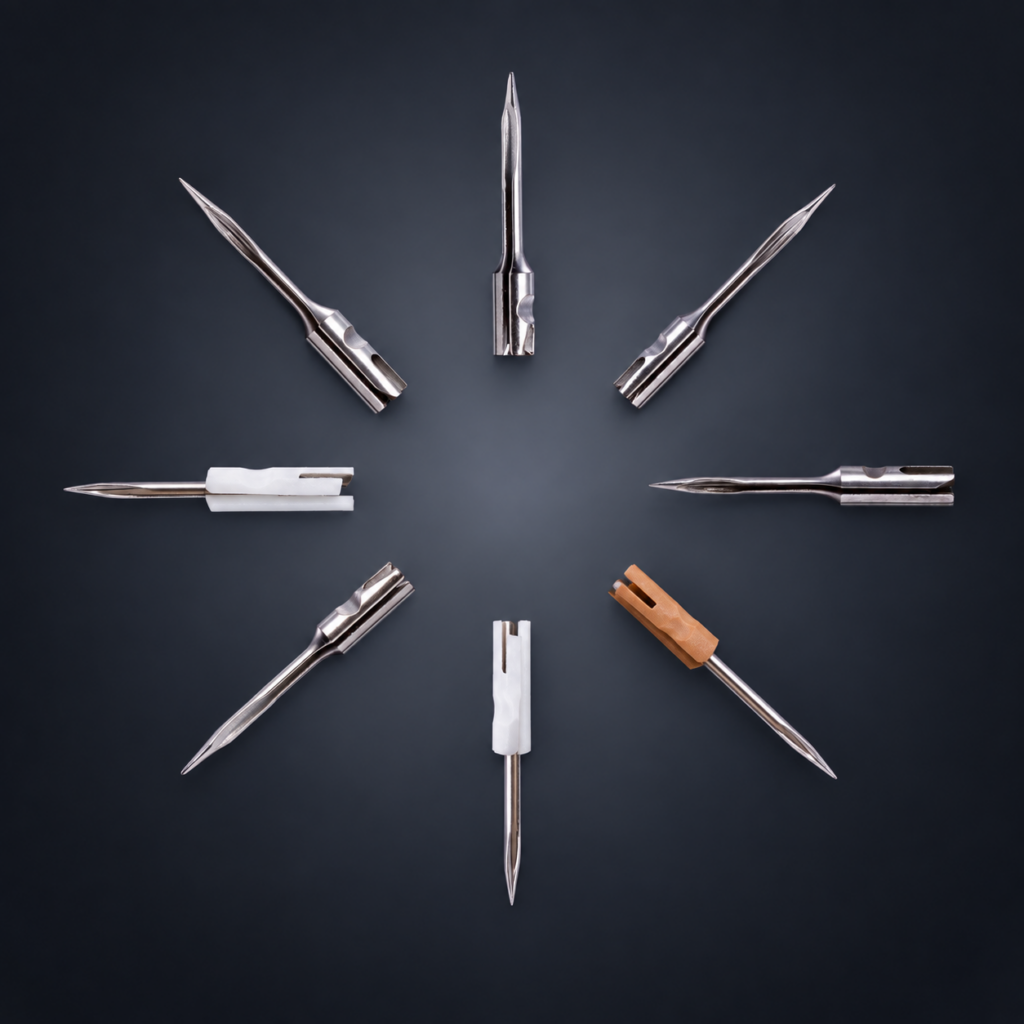

Keep garment tagging accurate and efficient with Mark II Fine Tag Gun replacement needles. Designed exclusively for compatible Mark II Fine Tag Guns, each needle features a cutter in the needle shank, to help deliver clean, consistent tag fastener cutting when replacing a worn/damaged needle.
Product Dimensions
Compare compatible Mark II Fine needle models and dimensions.
| Product | Model | Total Length A (mm) | Shaft Length B (mm) | Shank Length C (mm) | Shaft Dia. D (mm) | Max. Fabric E (mm) | Recommended Tag Gun |
|---|---|---|---|---|---|---|---|

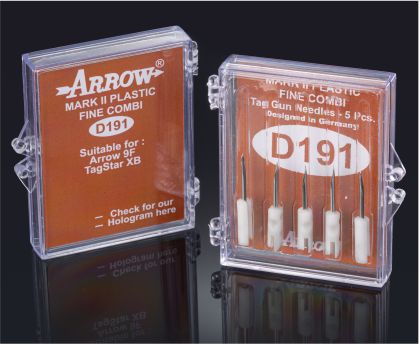

 | D191 | 26.00 | 13.50 | 12.50 | 1.30 | 7.00 | Arrow 9F TagStar XB |

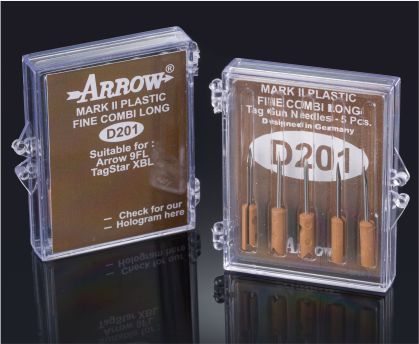

 | D201 | 28.50 | 16.50 | 12.50 | 1.30 | 9.00 | Arrow 9FL TagStar XBL |

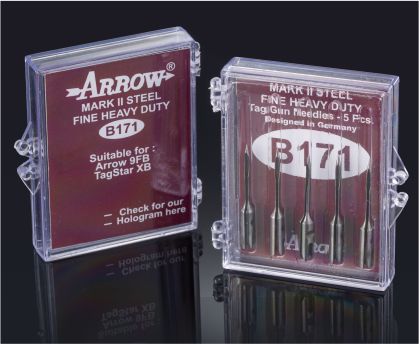

 | B171 | 31.00 | 18.50 | 12.50 | 1.50 | 8.00 | Arrow 9F TagStar XB |

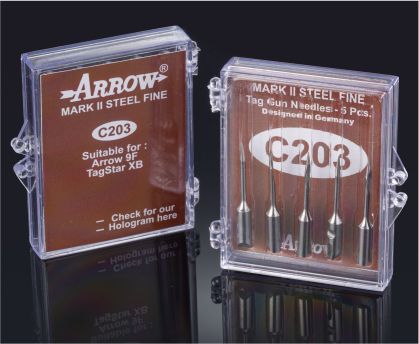

 | C203 | 30.35 | 18.35 | 12.00 | 1.48 | 8.00 | Arrow 9F TagStar XB |

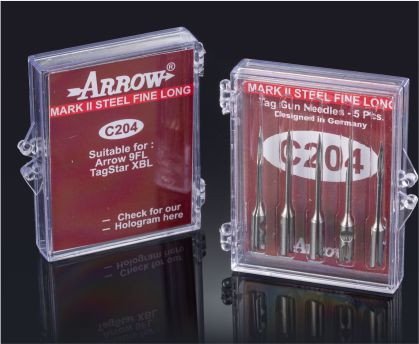

 | C204 | 35.55 | 22.20 | 13.35 | 1.58 | 12.40 | Arrow 9FL TagStar XBL |

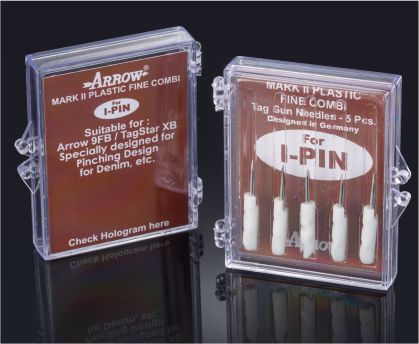

 | FIP | 25.50 | 10.00 | 15.50 | 1.30 | 5.00 | Arrow 9F TagStar XB |

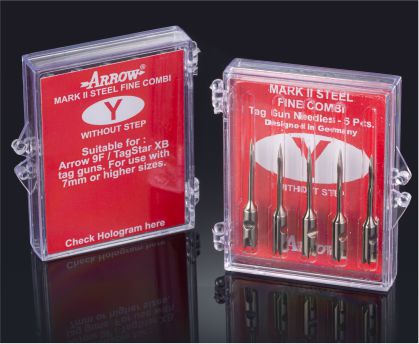

 | Y Without Step | 31.00 | 19.00 | 12.00 | 1.50 | 8.00 | Arrow 9F TagStar XB |

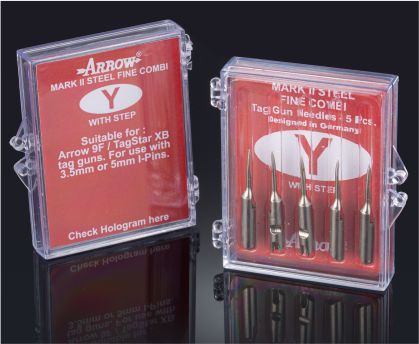

 | Y With Step | 29.50 | 12.50 | 17.00 | 1.40 | 6.00 | Arrow 9F TagStar XB |
Need Assistance?
Find The Right Needle
Speak with the Jay Group team about Mark II Fine needles and compatible tagging equipment.
