Tag Gun Needles
Mark I Standard

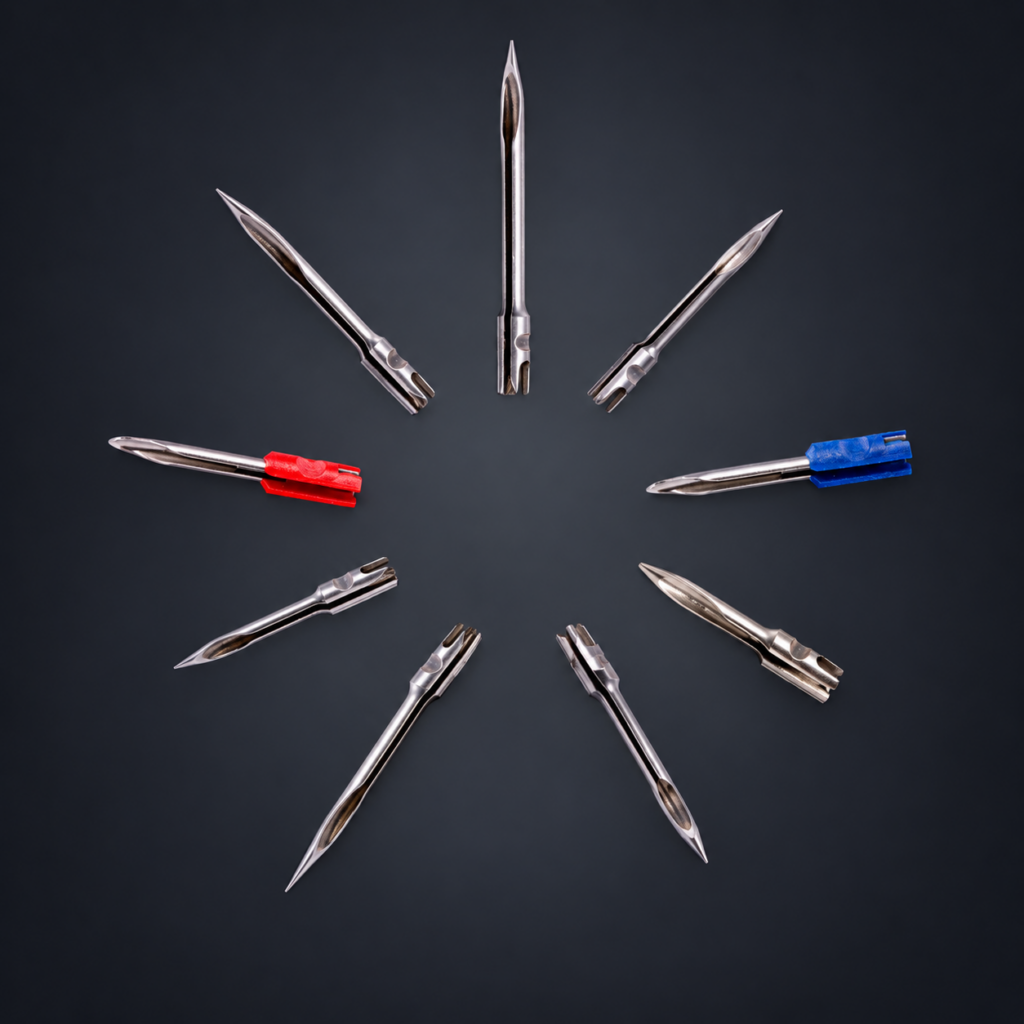

A dependable replacement needle designed for smooth, consistent tagging with compatible Standard Tag Guns. Mark 1 Needles are those, that do not have a cutter profile in the shank area. The cutter is separately fixed into the tag gun. Hence, always double check if your tag gun supports this type of tagging needle.
Product Dimensions And compatibility
Compare compatible Mark I Standard needle models and dimensions.

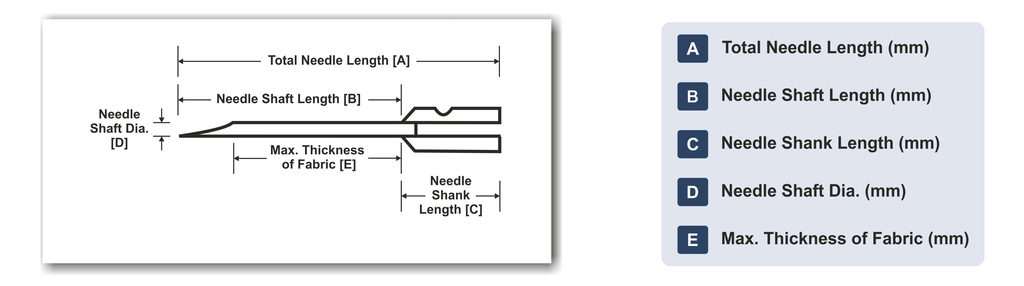

| Product | Model | Total Length A (mm) | Shaft Length B (mm) | Shank Length C (mm) | Shaft Dia. D (mm) | Max. Fabric E (mm) | Recommended Tag Gun |
|---|---|---|---|---|---|---|---|

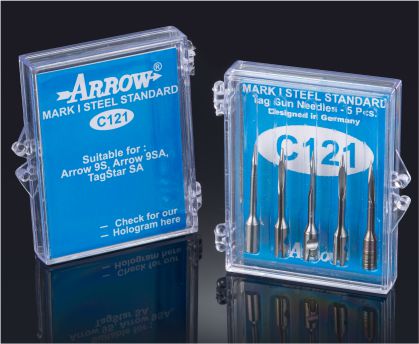

 | C121 | 30.30 | 20.80 | 9.50 | 2.00 | 8.00 | Arrow 9S Arrow 9SA TagStar SA |

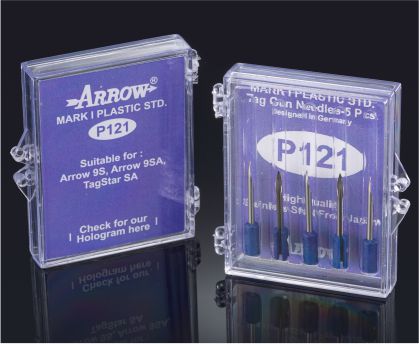

 | P121 | 26.50 | 17.30 | 9.20 | 1.80 | 10.00 | Arrow 9S Arrow 9SA TagStar SA |

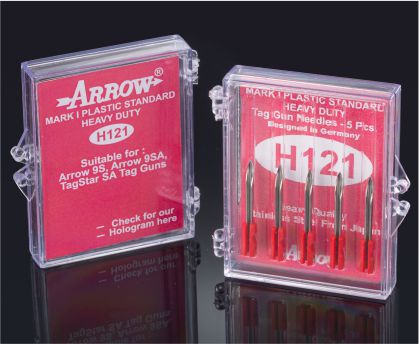

  | H121 | 26.50 | 17.30 | 9.20 | 2.00 | 10.00 | Arrow 9S Arrow 9SA TagStar SA |

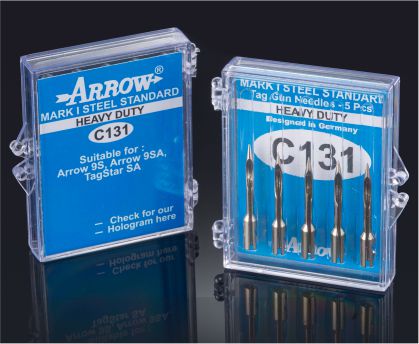

 | C131 | 30.30 | 20.50 | 9.50 | 2.20 | 10.00 | Arrow 9S Arrow 9SA TagStar SA |

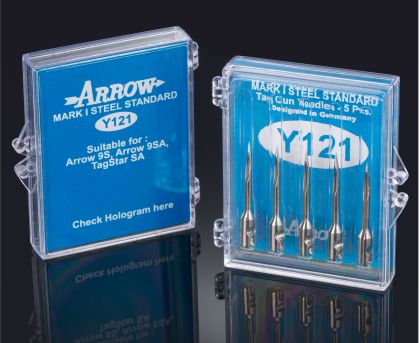

 | Y121 | 29.80 | 19.30 | 10.50 | 1.90 | 10.00 | Arrow 9S Arrow 9SA TagStar SA |

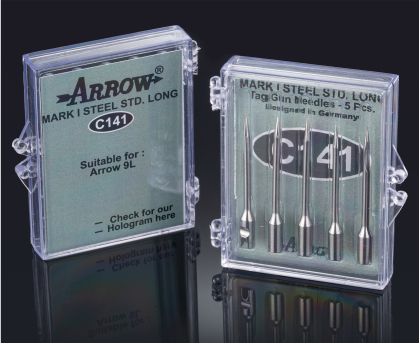

 | C141 | 38.50 | 27.60 | 10.90 | 2.00 | 16.00 | Arrow 9L+ |

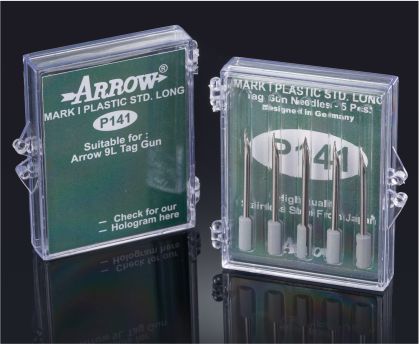

 | P141 | 34.00 | 24.00 | 10.00 | 2.00 | 18.00 | Arrow 9L+ |

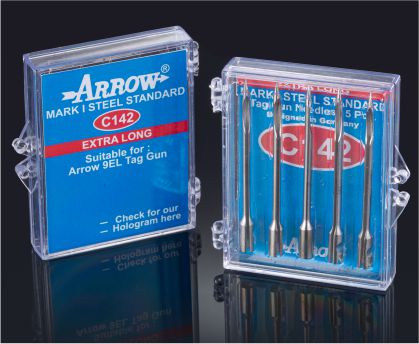

 | C142 | 49.00 | 38.00 | 11.00 | 2.00 | 25.00 | Arrow 9EL+ |
Need Assistance?
Find The Right Needle
Speak with the Jay Group team about Mark I Standard needles and compatible tagging equipment.
